Description

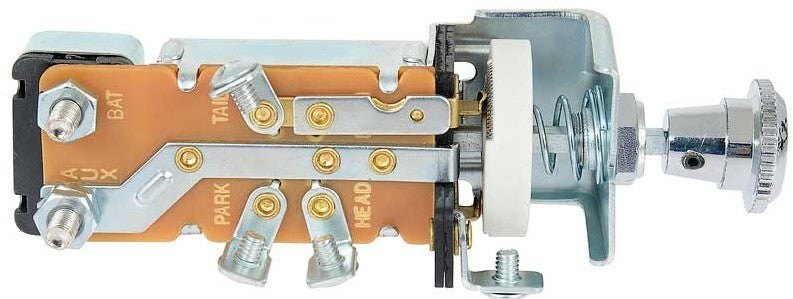

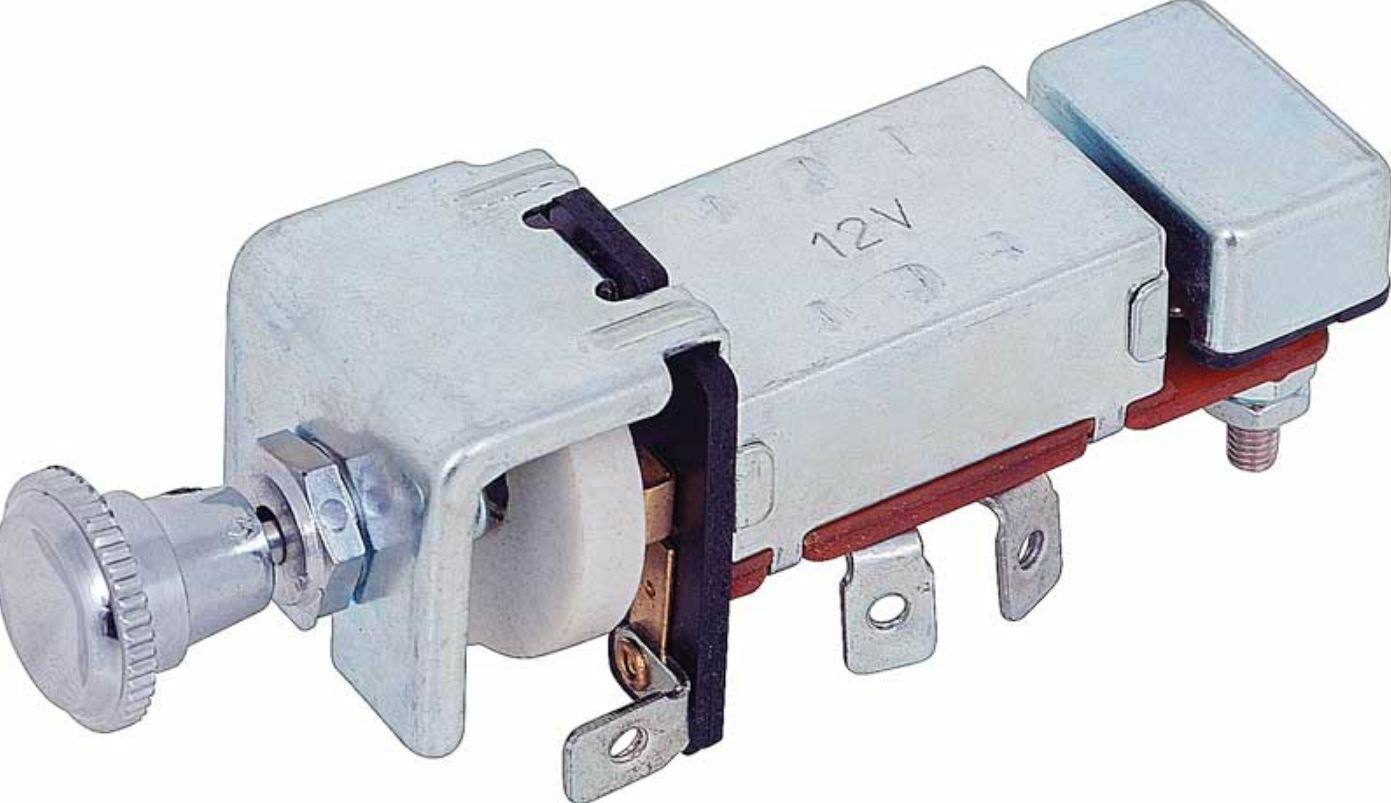

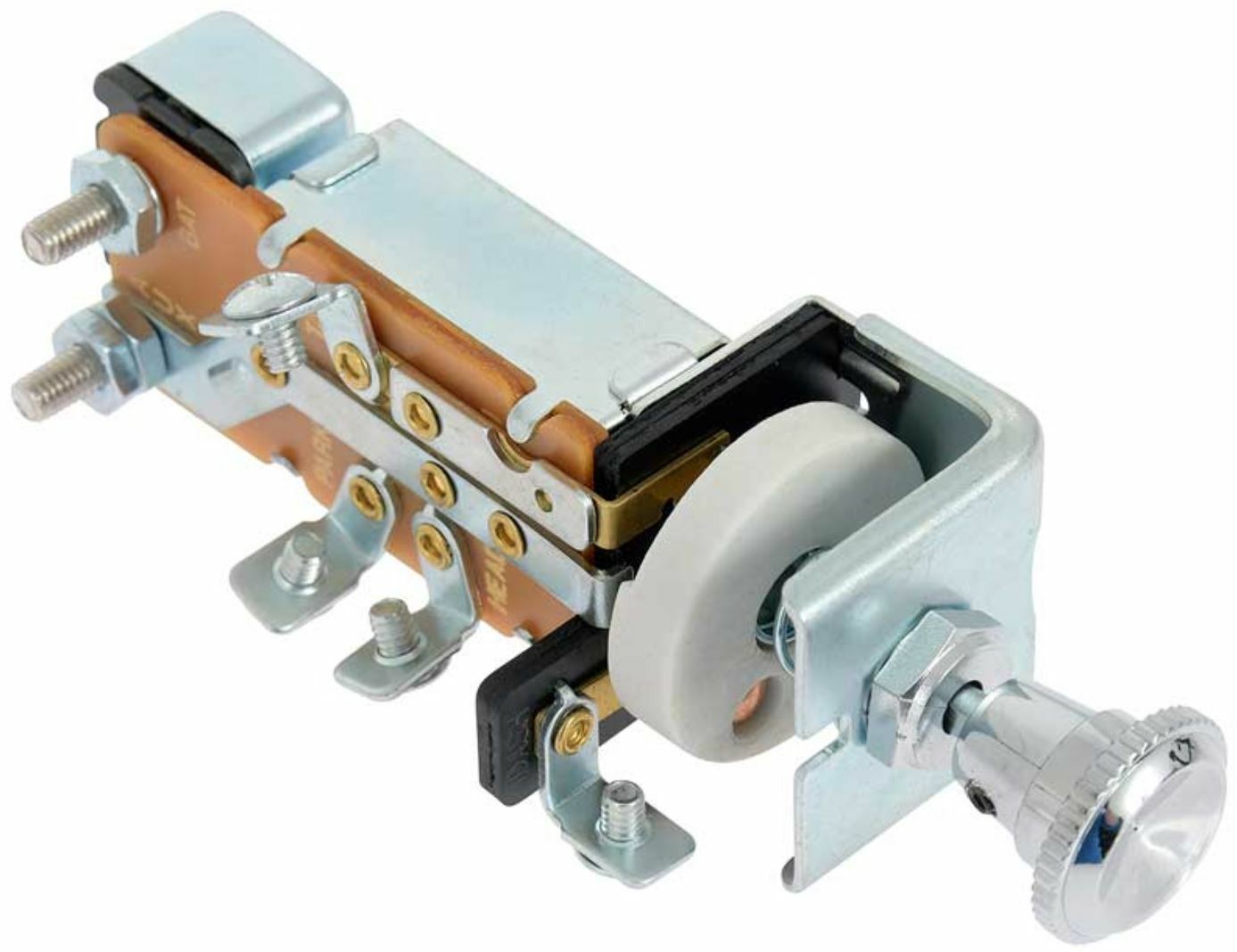

OER 12 Volt Universal Headlight Switch
For 1940-1955 Buick Chevy Oldsmobile and Pontiac Models
Universal fit, service replacement headlight switch and knob designed for fitment on a variety of GM models with 12 volt system. A convenient way to update your headlight switch when upgrading and converting your 6 volt system to 12 volt system. Each switch includes the shaft and knob.
Switch mounts in a 3/8" diameter hole. This switch is perfect for a hot rod, rat rod or custom. Can be used for just about any vehicle that needs a more modern headlamp switch. The shaft is not removable from this switch, but the knob can be removed using a 1/16" Allen wrench. If you wish to use your original headlight knob instead of the knob that comes with this switch, it must have 8-32 internal threads (or will need to be modified) to work with this switch. This switch does NOT control the interior lights.
Specifications
Universal Push Pull for Headlamp
5 Screw Terminals
3 Positions
Rating: 20 Amps @ 12 Volts DC With 11 ohms of Resistance
Push Pull Switch with Circuit Breaker
Rheostat - Turn to Dim Dashboard Light
Three Position Switch = OFF-ON-ON
Position 1 = Off
Position 2 = Tail, Park, and Dash
Position 3 = Tail, Dash, and Headlights
5 Screw Terminals (2 Stud Terminals)
Stem 3/8" Long 3/8" Diameter
Replaces GM 1994016, 1994022, 1995031, 1995035, 1995041, 1995045, 1995048, 1995052, D-1537
Applications
1950-1953 Buick Roadmaster
1949-1949 Buick Roadmaster Series 70
1950-1953 Buick Special
1949-1949 Buick Special Series 40
1950-1953 Buick Super
1949-1949 Buick Super Series 50
1948-1950 Cadillac Commercial Chassis
1950-1950 Cadillac Series 60 Fleetwood
1948-1949 Cadillac Series 60 Special Fleetwood
1948-1950 Cadillac Series 61
1948-1950 Cadillac Series 62
1948-1950 Cadillac Series 75 Fleetwood
1954-1954 Chevrolet 1500
1947-1952 Chevrolet Fleetline Truck
1947-1948 Chevrolet Fleetmaster Truck
1947-1955 Chevrolet Sedan Delivery
1947-1955 Chevrolet Truck Base
1947-1955 Chevrolet Truck 3800
1948-1955 Chevrolet Truck 3700
1947-1955 Chevrolet Truck 3600
1955-1955 Chevrolet Truck 3400
1955-1955 Chevrolet Truck 3200
1947-1955 Chevrolet Truck 3100
1955-1955 Chevrolet Truck 3500
1948-1954 Chevrolet Truck 3900
1951-1955 GMC 100
1948-1955 GMC 100-22
1953-1954 GMC 100-24
1952-1953 GMC 102-22
1951-1955 GMC 150
1948-1955 GMC 150-22
1953-1954 GMC 150-24
1951-1955 GMC 250
1951-1955 GMC 250-22
1954-1954 GMC 250-24
1952-1952 GMC 253-22
1951-1955 GMC 280-22
1951-1955 GMC 300
1955-1955 GMC 350-8
1948-1949 GMC EF241
1948-1949 GMC EF242
1948-1950 GMC FC100
1948-1950 GMC FC101
1948-1950 GMC FC102
1948-1950 GMC FC150
1948-1950 GMC FC152
1950-1950 GMC FC250
1950-1950 GMC FC251
1950-1950 GMC FC252
1950-1950 GMC FC253
1947-1955 GMC Truck
1950-1954 Pontiac Catalina
1942-1954 Pontiac Chieftain
1948-1952 Pontiac Silver Streak
1954-1954 Pontiac Star Chief
1942-1952 Pontiac Streamliner
1942-1953 Pontiac Torpedo
