Description
BEZEL NOT INCLUDED
Available in Blue LED, but also available in white, red, and green LED

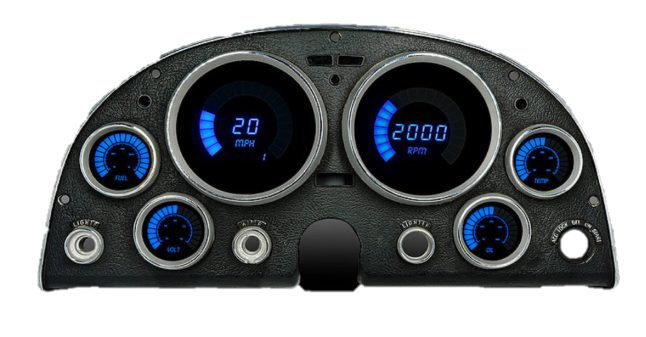

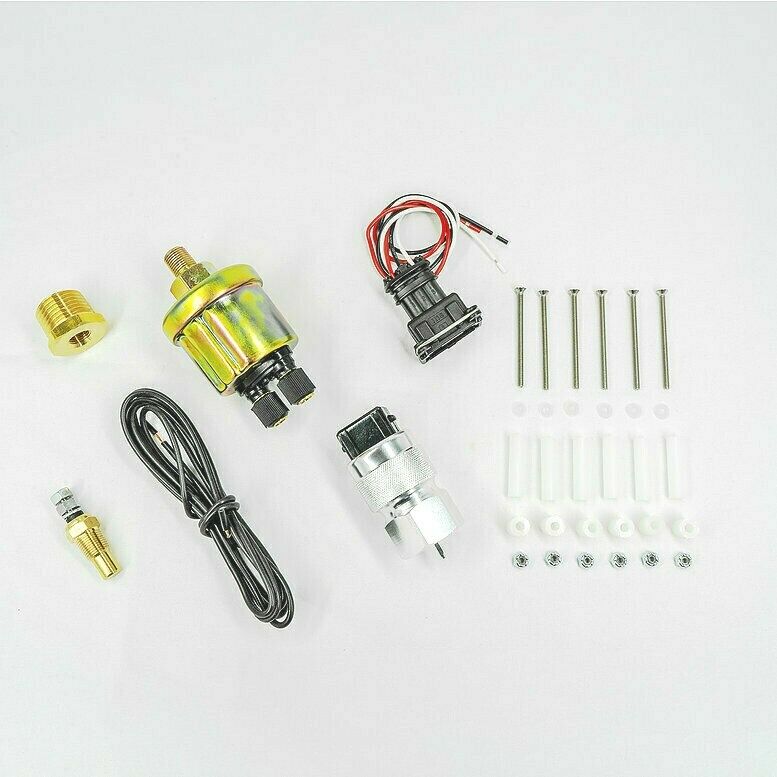

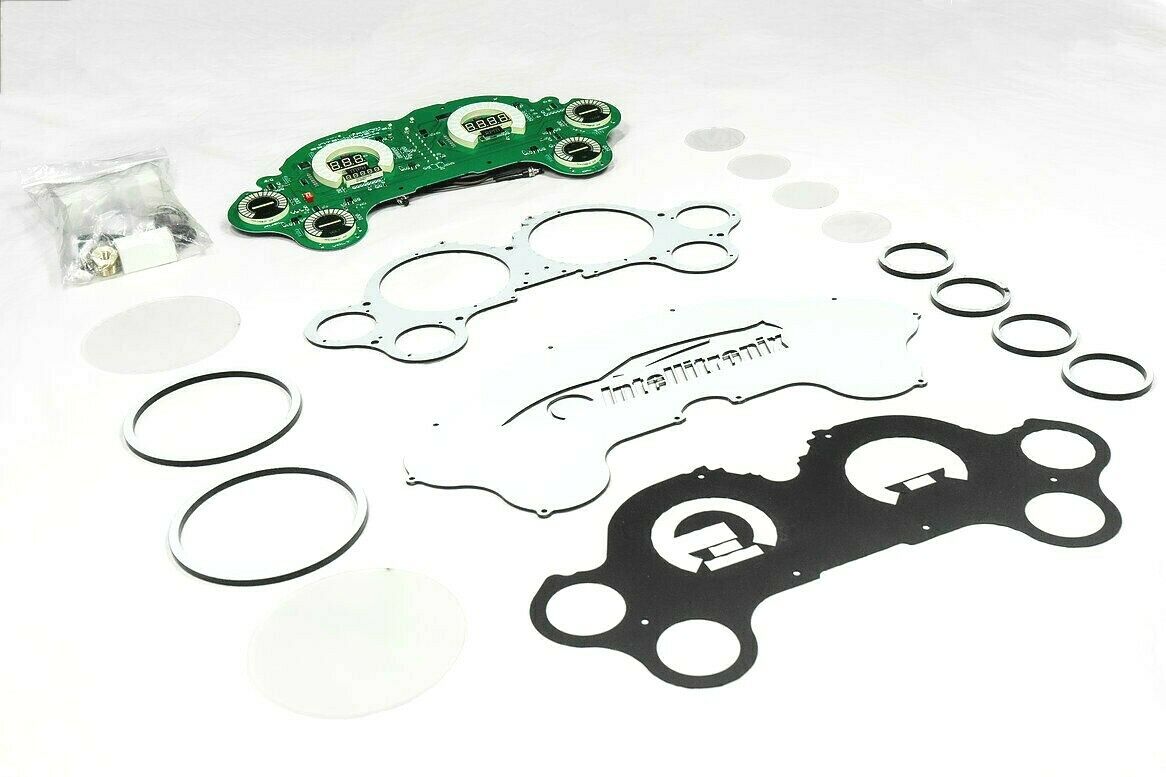

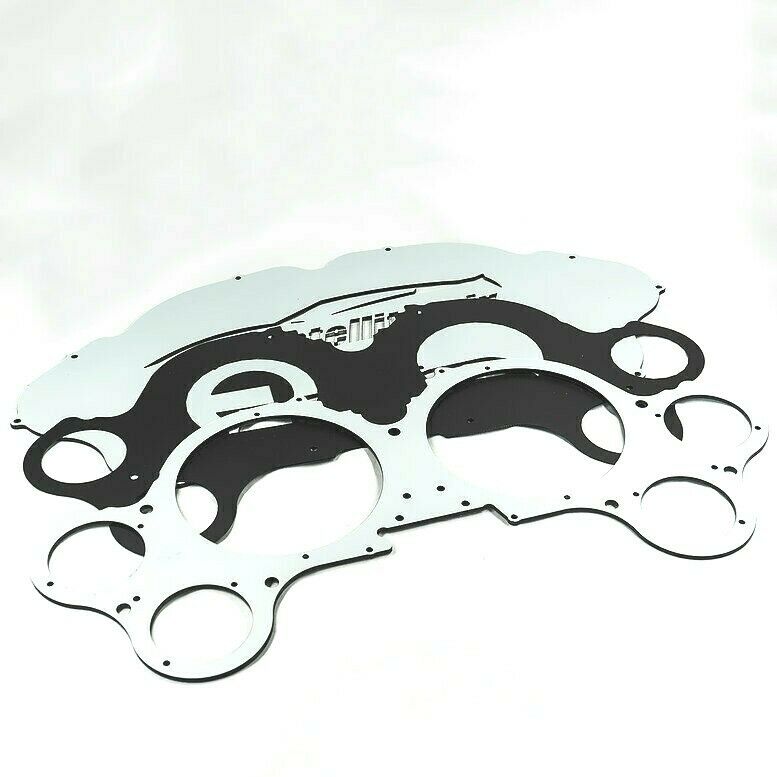

Your 1963-67 Corvette will look fabulous with this jaw dropping Intellitronix direct fit 63-67 Corvette LED Digital Bargraph Replacement Panel. The 1963-67 Corvette LED Digital Bargraph Panel comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature sending unit, oil pressure sending unit, and speedometer sending unit with senders and sensors for vehicles without electronic transmission or cruise control, and instructions for installation.
The 63-67 Corvette replacement panel features a custom-designed LED bargraph, is microprocessor-controlled with peak rpm memory recall, automatic night dimming and RPM activated switch that handles 3 amps. Red is best for night driving.
The 1963-67 Corvette LED Digital Bargraph Replacement Panel is only 3 3/8 inches in diameter and 1 1/2 inches deep.
Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1/4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or use included S9013 universal speedometer sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer has a 0-9999 readout in 100, 10, or 1 RPM increments (ex. 9900, 9990, 9999). It works on 1-2-4-6-8-10-12-cylinder engines.
Water Temperature display reads 160° to 240°F range and includes sending unit S8013. Please add a note at checkout if you need a 3/8" bushing, because we send the more common 1/2" bushing. Otherwise, you will have to purchase the bushing on your own.
Oil Pressure reads 0-80 PSI range. Oil pressure sending unit is included.
Voltmeter displays 12-16 volts range and no sending unit required.
Fuel Level displays Empty to Full in 1/4 increments and works with most existing fuel level sending unit and is set at industry standard 0-90. Please include a note, if your sender works off a different Ohms range.
The panel features turn signals, high beam, in-dash mounting hardware and installation instructions.
Easy Install, Lifetime Warranty, Great Price and Gauges for your very special classic vehicle.
BEZEL NOT INCLUDED
FEATURES:
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH
ACCESSORIES: All required sending and sensor units are included.
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
**Important; Item needs to be built and ship direct from the manufacturer. Some items can have a lead time of up to 30 days. Please contact us for availability before ordering**
