Description

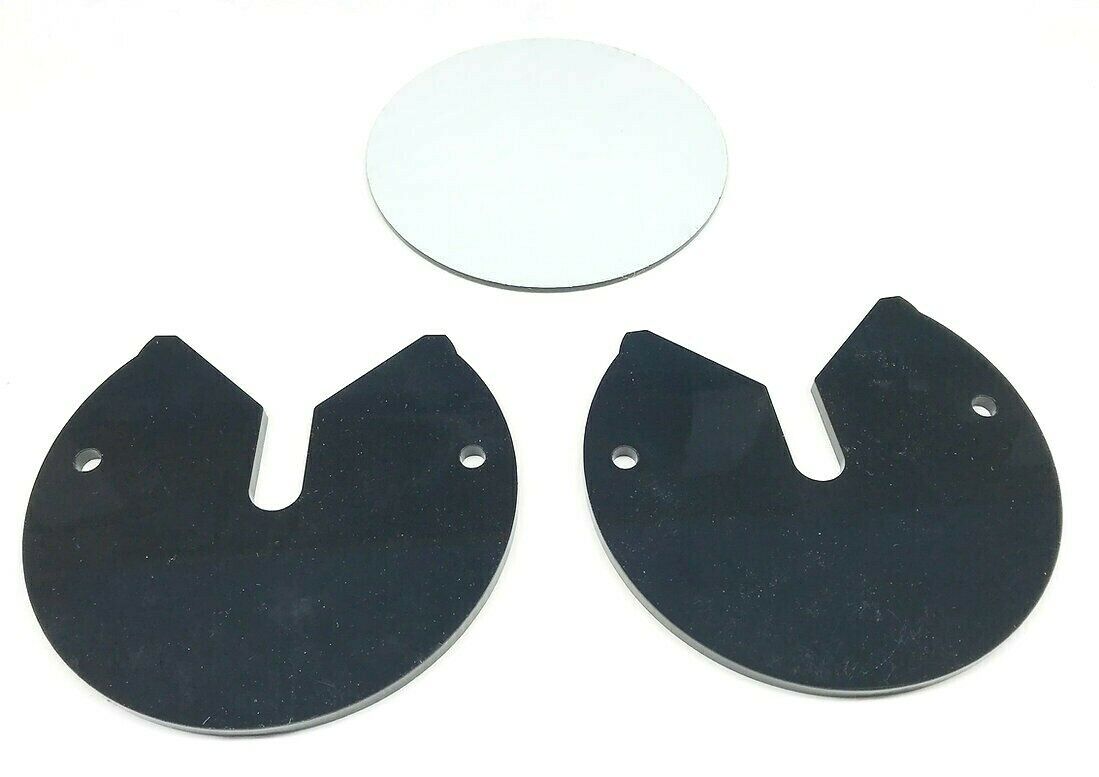

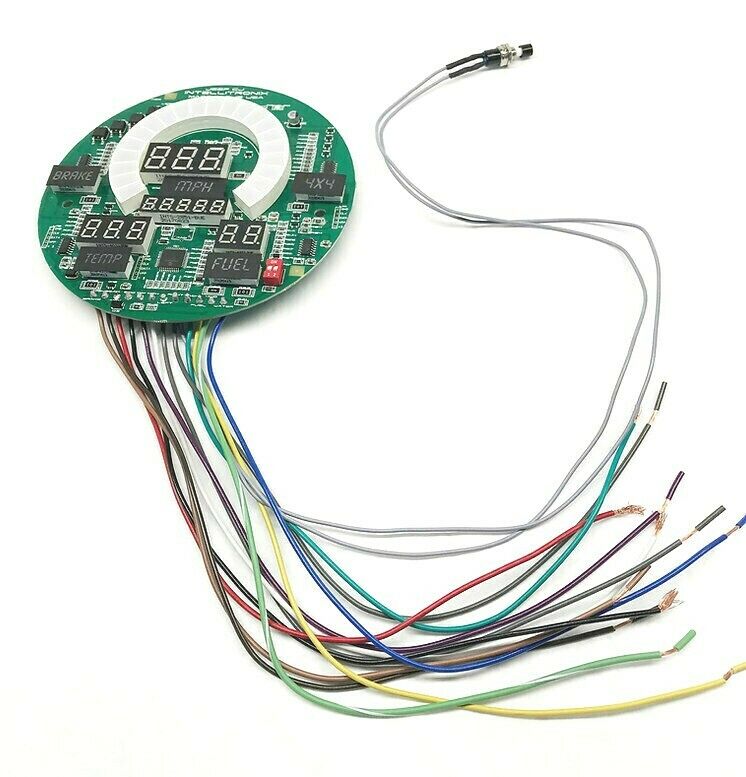

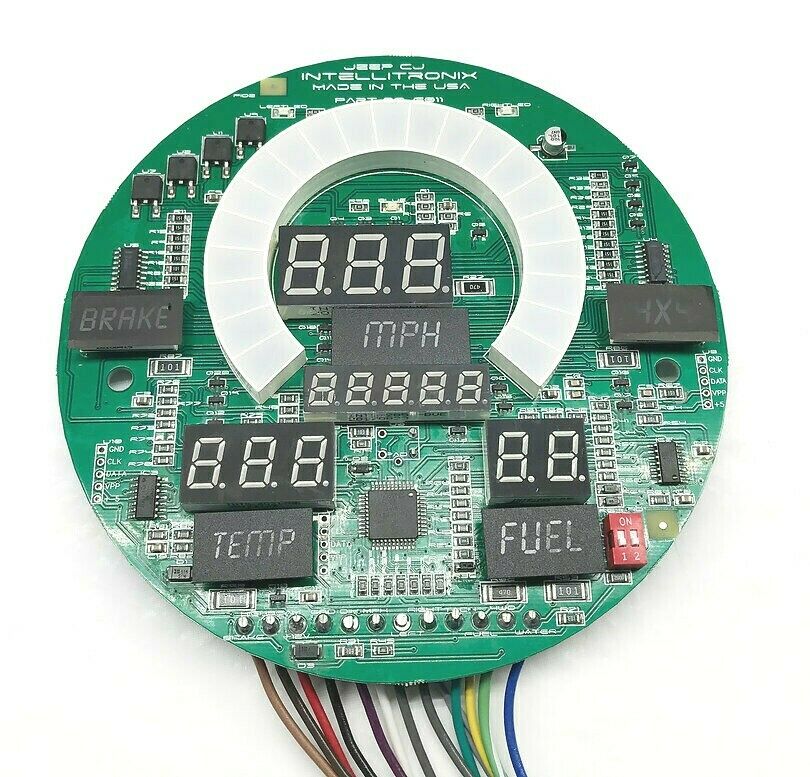

The 1955-86 Jeep CJ will look smashing with your new 55-86 Jeep CJ LED Digital Replacement Gauge Panel by Intellitronix comes complete with direct fit printed circuit boards, custom fit "smoked" plexiglass faceplate, universal temperature, and speedometer sending units with sender and sensor for vehicles without electronic transmission or cruise control, and instructions for installation.
Factory original JEEP mechanical gauges can be highly inaccurate, faded, and even cease to function ... leaving you in the dark as to how your engine are really performing. You can do something about that with modernization!
Manufactured to replace your factory gauges and installed into your existing gauge housing, the 1955-86 Jeep CJ LED Digital Gauge Panel is built with platinum bright, long lasting CREE LEDs and engineered as a complete, direct-fit solution, bolted to your existing gauge panel providing precision digital accuracy for all vital engine functions.
The vibrant and crisp easy to read lights will increase accuracy and give the interior of your 1955-86 Jeep CJ a completely high-tech look.

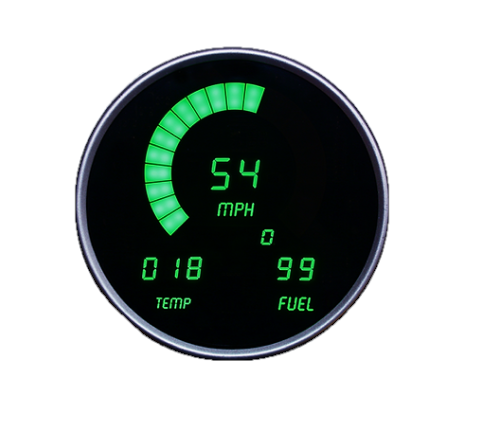

Speedometer reads up to 255 MPH and features odometer, trip meter, one-button calibration, regardless of tire size, gear ratio, or transmission, and 0-60 time, 1/4 mile elapse time, and high speed recall, all with the push of a button. The speedometer can be used with electronic cruise control senders or our universal speedometer S9013 sending unit, if your vehicle is not equipped with a functional cruise control.
Tachometer displays 0-6000 RPM In 300 RPM Increments and is programmable for 4-6-8-cylinder engines. Speedometer and tachometer are a combined gauge.
Water Temperature displays 100-300°F and range sending unit S8013 is included. If you need a 3/8" bushing, please note on your order, because we send the more common 1/2" bushing--otherwise, you will have to supply the bushing on your own.
Fuel Level reads 0-99% range in 1% increments and is programmable for Jeep/Chrysler, Ford, GM, VDO 10-180 ohms and aftermarket 240-33 ohms.
The panel includes turn signals, high beam, brake, and 4-wheel drive indicators making it the ultimate way to keep the ride you love cruising through the times.
Easy Install, Lifetime Warranty, Great Price, & Gauges for your very special classic vehicle.
FEATURES:
AVAILABLE COLORS: White, Red, Blue and Green
SPEEDOMETER READING: Order your speedometer in either MPH or KPH

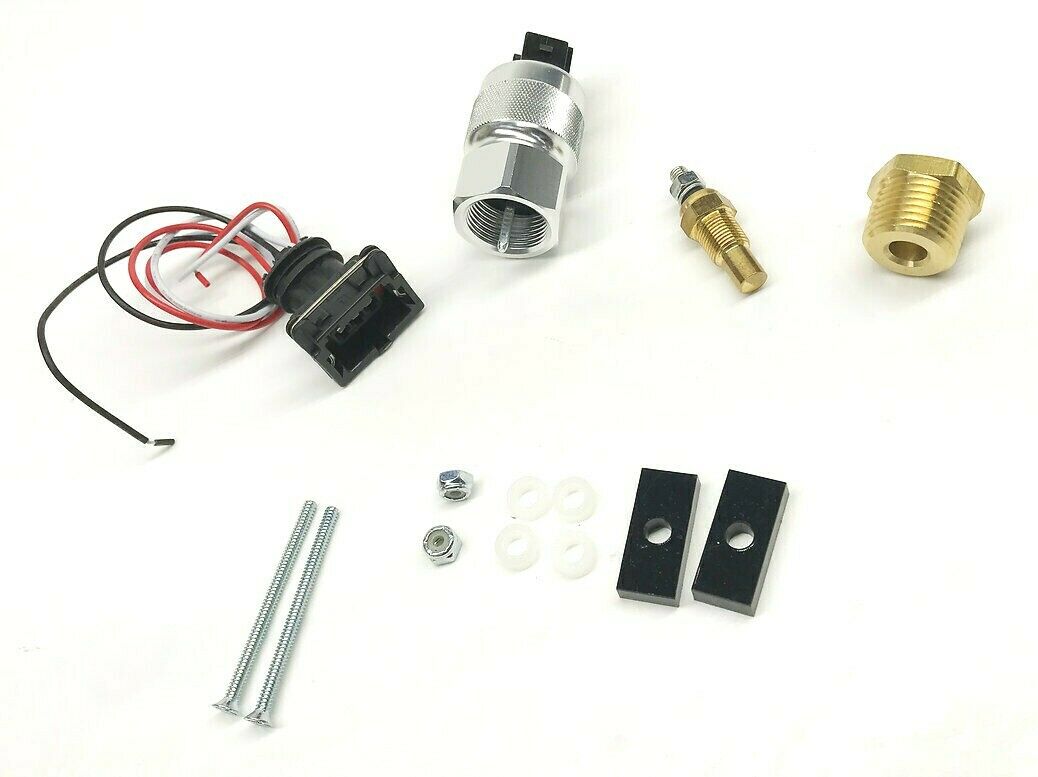

ACCESSORIES: All required sending and sensor units are included.
If you have an LS engine, then please be aware that you may need adapters (metric to nonmetric) for our sending units. You may have to obtain them elsewhere separately, though they may have been included with your engine kit, so you may already have them. Also, if your LS engine is 4 cylinder, then please send a note to seller letting us know, so that we can set the tachometer accordingly. The tachometer is programmable, you can set it yourself if it comes set differently.
**Important; Item needs to be built and ship direct from the manufacturer. Some items can have a lead time of up to 30 days. Please contact us for availability before ordering**
