Description

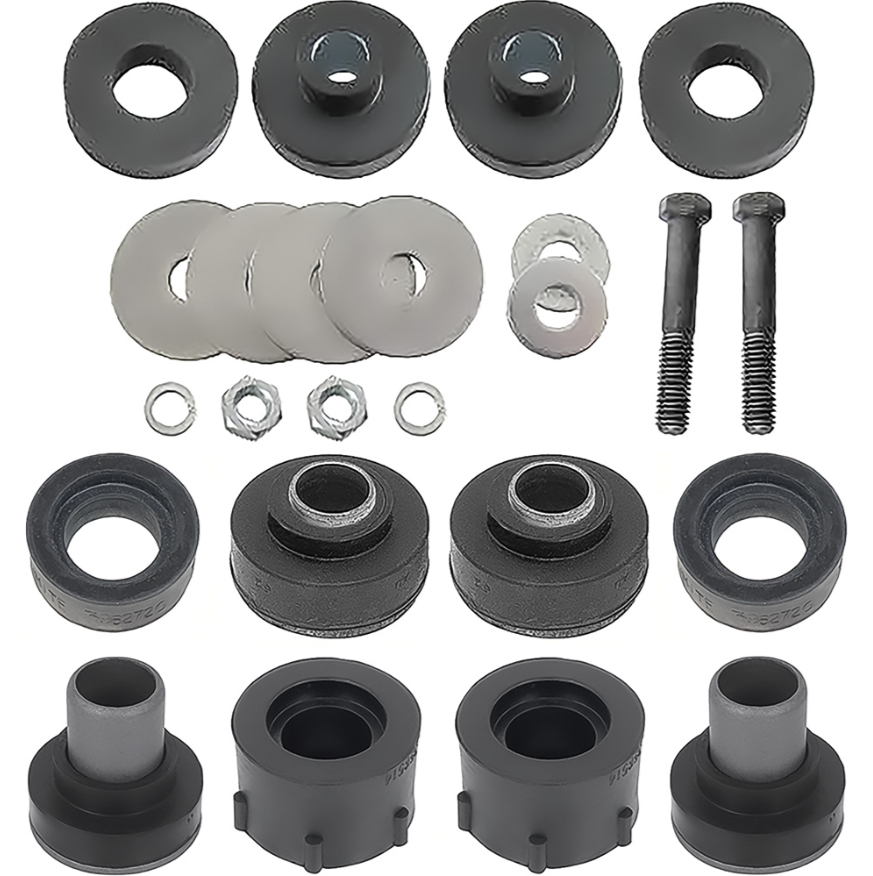

OER Subframe and Radiator Support Bushing Kit
For 1976 Firebird & Trans AM
Reproduction of the original style body mount and radiator support bushings designed for 1973-75 Pontiac Firebird and Trans Am models. Replacing the original body mount bushings with OER® rubber reproductions is a sure fire way of maintaining originality and mounting the subframe exactly the way the factory intended. Each set of bushings contains all shouldered rubber bushings and cushions required for complete replacement of the subframe. Each body mount is produced using correct compression molded S.B.R. with steel sleeve inserts where required.
Fitment Note Replaces the following GM part numbers: Radiator support: (#1 location) bushing #478778, cushion # 478779. Body mount part numbers: (#2 location) front bushing #527847, cushion #332654. Body mount part numbers: (#3 location) rear bushing #356513, cushion #356514. Includes radiator support to frame bolts and washers.
Recommended For original style square flange nuts, order: A8600175
Pontiac Applications
1976 Pontiac Firebird
Item will need to be shipped directly from the manufacturer, so please allow an extra 2 to 3 days handling. If there are any availability issues, you will be notified immediately.
